CRADLE CFD
CAE tool for Multiphysics focused Computational Fluid Dynamics software
OVERVIEW
SC/Tetra is a general purpose thermo-fluid simulation software that uses a hybrid mesh to accurately represent complex shapes and model geometry. Features such as a sophisticated mesh generation system, high speed computing, low memory consumption, and a user-friendly interface throughout to increase user efficiency.

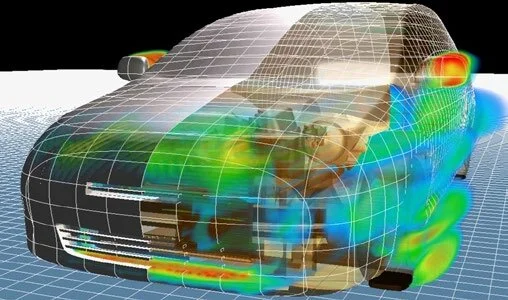

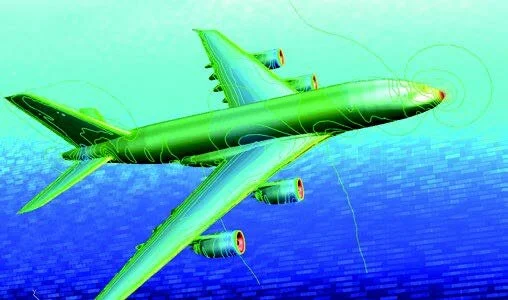

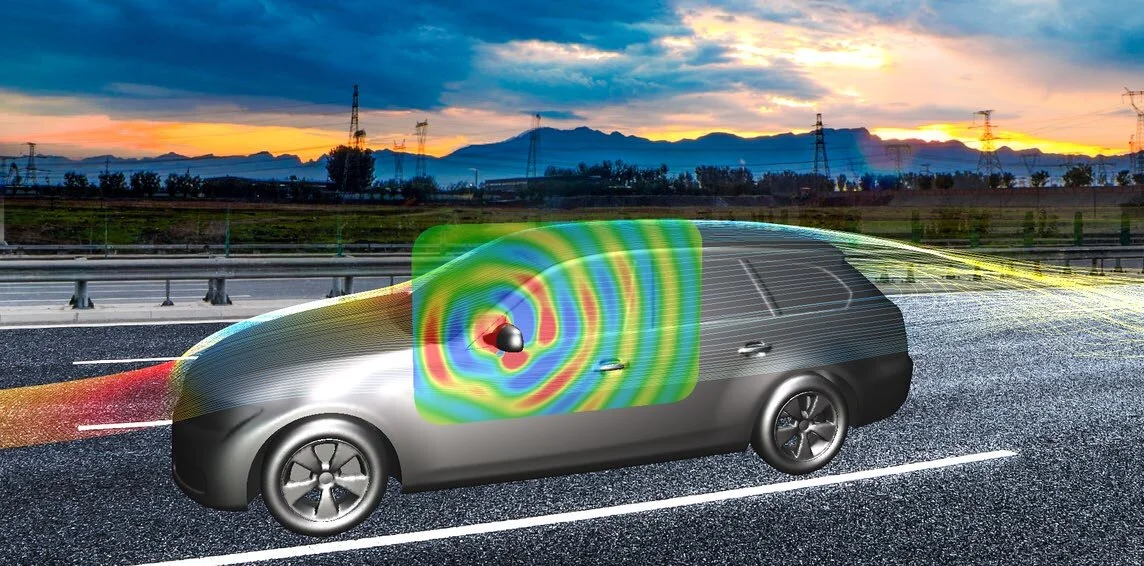

Cradle CFD offers a practical, state-of-the-art computational fluid dynamics, CFD, simulation and visualization software solution. Embracing remarkable processing speed, refined technology, and proven practicality verified by high user satisfaction, it has been in use for diverse applications, such as Automotive, Aerospace, Electronics, Building and Architecture, Civil Engineering, Fans, Machinery, and Marine developments, to solve thermal and fluid problems.
Incorporating Multiphysics co-simulation and chained simulation capabilities to achieve couplings with Structural, Acoustic, Electromagnetic, Mechanical, One-Dimensional, Optimization, Thermal Environment, 3D CAD and other analysis tools that allow users to efficiently solve engineering problems spanning multiple disciplines.
The powerful award-winning postprocessing capabilities to generate visually powerful simulation graphics to easily convey simulation data, Cradle CFD enables users with any skill level to process advanced simulations and gain valuable insights into their designs.
CRADLE - CAPABILITIES
• Import native data from major 3D CAD software as well as most generalized intermediate data formats (Parasolid XT, STEP, and others)
• Capable of solving compressible (density based solver) and incompressible (pressure based solver) flows
• Account for thermal radiation effects by VF and FLUX methods
• Discontinuous mesh, overset mesh, moving object functions to enable evaluating object rotations and motions, as well as flow and heat generated as a result
• Able to evaluate 6 degree-of-freedom motion, where a rigid body is passively translated or rotated by fluid force
• Free surface function to calculate interface geometry between gas and liquid
• Perform free surface analysis to evaluate boiling and condensation, heat conduction, latent heat, and gas-liquid phase changes
• Analyze phase changes between liquid and solid, solidification, melting, interaction between flow, and heat transfer resulting from latent heat
• Calculate humidity and dew condensation caused by temperature changes and evaporation/transferring moisture within solid
• Assess cavitation and possible erosion on propeller rotating at high speed underwater
• Perform multiphase analysis using DEM (Discrete Element Method) that enables coupling of fluid and flow analysis of particles
• Simulate particle behavior affected by diameter size, density, falling speed, and interaction between particles and fluids
• Account for liquefaction at adhering on the wall surface
• Consider external force and effects of an electrostatic field on charged particles
• Import wiring pattern such as Gerber data generated by electronic CAD to generate a model
• Convert results on temperature changes acquired by transient heat resistance measurement into structure function (thermal resistance – heat capacity characteristics) to accurately generate a thermal model
• Illuminance analysis to evaluate and consider directivity effects on the brightness of objects, where natural daylight and artificial lighting is cast
• Refer to climate data (ASHRAE and NEDO) to analyze solar radiation, where the position of the Sun is automatically calculated by longitude, latitude and date
• Thermoregulation model (JOS) to analyze temperature and humidity changes of the human body and surrounding environment
• Estimate comfort level (PMV and SET*), degree of heat stress (WGBT), and ventilation (SVE)
• Mapping function minimizes calculation load by applying a wide range of its surrounding area as boundary conditions
• CradleViewer, Light-weight viewer application with support for virtual-reality that allow users to easily access and share simulation data
• Rich set of automation API that allows users to highly automate workflows, democratizing Cradle CFD solutions to non-expert users
• Award-winning, powerful visualization postprocessing capabilities
MODULES
Cradle CFD solution consists of the following products:
scFLOW
scFLOW is a next-generation CFD tool that uses unstructured mesh to accurately represent complicated geometry.
With a streamlined workflow, the Preprocessor aids users to generate high-quality polyhedral mesh elements and construct complicated models and the Solver ensures more stability and speed, scFLOW is capable of solving aerospace and automotive aerodynamics, performance of fans, pumps and other rotating equipment, design problems of electronic devices, multiphase phenomena, marine propeller cavitation, and varied problems effectively.
scSTREAM
scSTREAM is a general-purpose CFD tool that uses Cartesian or cylindrical structured mesh to enable easy mesh generation and high-speed simulations to be performed in a fraction of the time of other solutions.

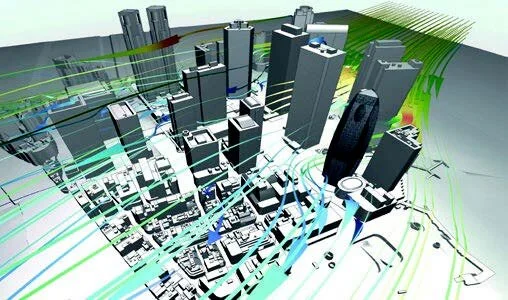

Due to the meshing nature and analysis system that enables large-scale calculation, scSTREAM excels at processing extensive simulations, where users are required to solve engineering problems such as thermal problems of electronic devices and indoor environment, wind flow, and heat island phenomena.
scPOST
scPOST is a comprehensive and versatile data visualization software empowering users to instantly create a rich view of design performance. It has capability for a sharable light-weight format that supports virtual reality for a more immersive data visualization experience. In addition to fluid dynamics results, it also supports other simulation results from acoustics, structures and multibody dynamics all in one visualization solution.
HeatDesigner
HeatDesigner is a structured (Cartesian) mesh thermal fluid analysis software specially designed for electronics cooling thermal analysis. It uses core technology from Software Cradle’s scSTREAM general purpose structured mesh thermal-fluid software product.
HeatDesigner’s performance is optimized for applications that do not require precise reproduction of fine geometrical curvature to predict an accurate flow field. However, HeatDesigner is capable of accommodating meshes with over a hundred million elements enabling it to capture fine geometrical details. Like scSTREAM, the major advantages of HeatDesigner are fast calculations times and low memory consumption.
